Now introducing the new range of GridPro frontplates and modules. A comprehensive range of finishes and modules available to offer ultimate flexibility. As well as a wide range of modules to choose from all of our switch modules are 20A rated so they are ideal for both domestic and commercial applications. The GridPro range will complement your existing Click installation, as the range was specifically designed to seamlessly match our existing ranges of Click® wiring accessories.
Dimensions - 25mm (W) x 53mm (H) x 20mm (D)
Rated Voltage: 250V
Load Rating: 20AX Suitable for Inductive Loads
Terminal Size 5mm
Terminal Capacity: 3 x 2.5mm, 2 x 4mm
Intermediate Switch: Yes
Modular: Yes
Insert Colour: White (Polar)
Part Numbers:

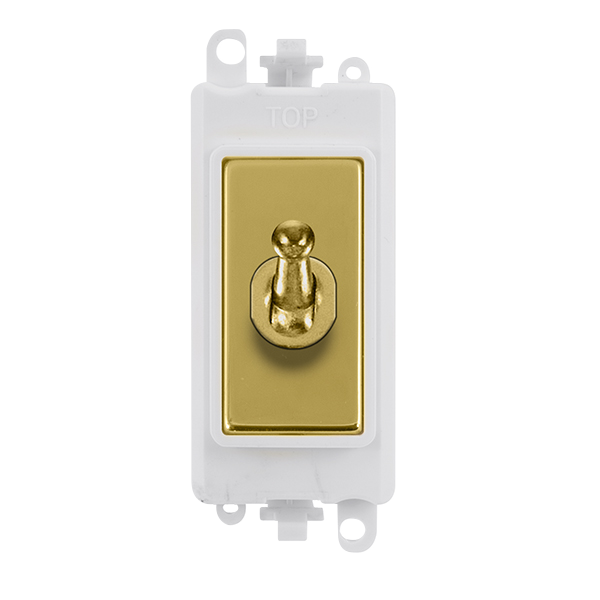

Brass - GM209028PWBR

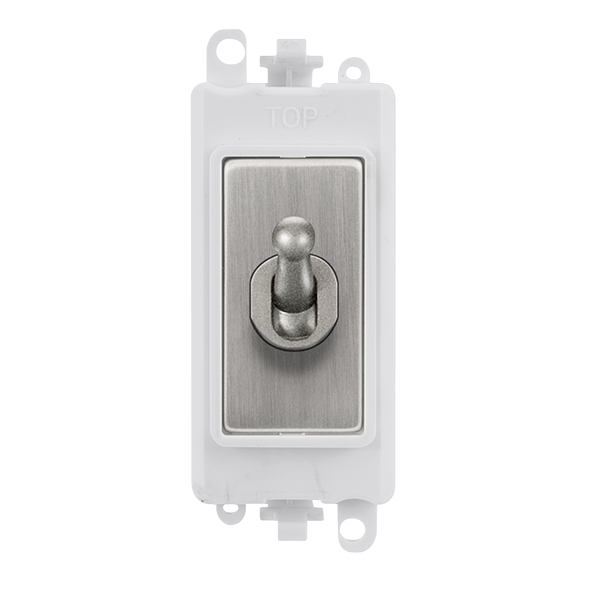

Brushed Stainless Steel - GM209028PWBS

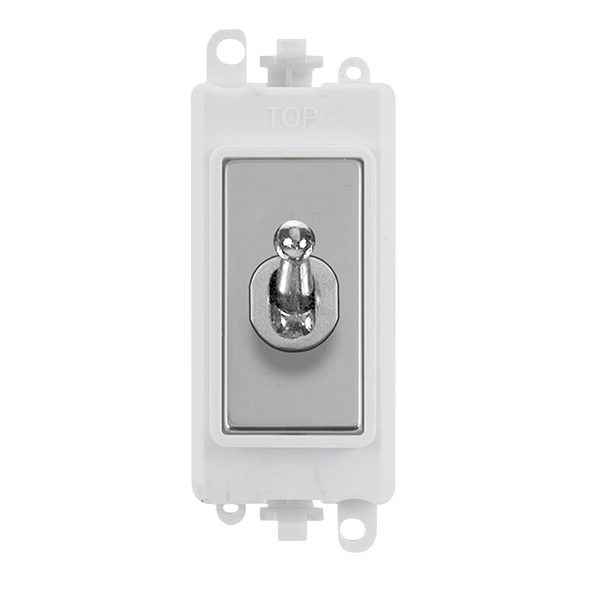

Chrome - GM209028PWCH

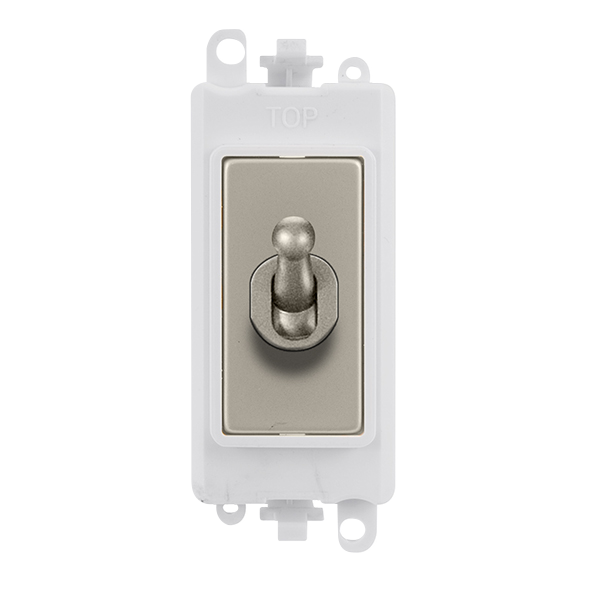

Pearl Nickel - GM209028PWPN

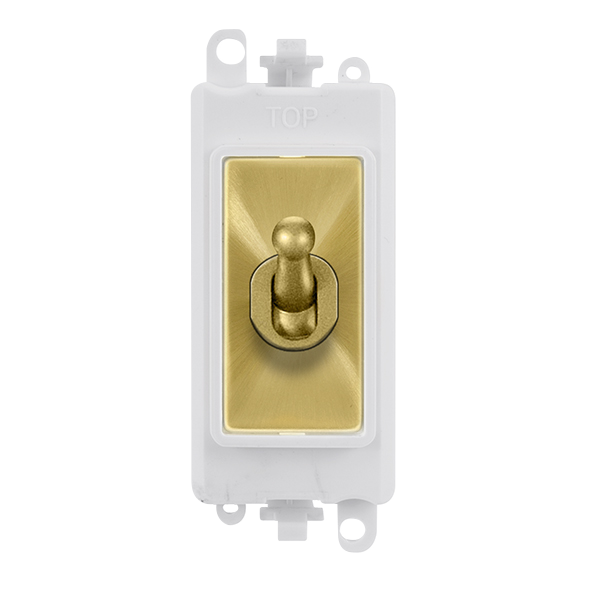

Satin Brass - GM209028PWSB

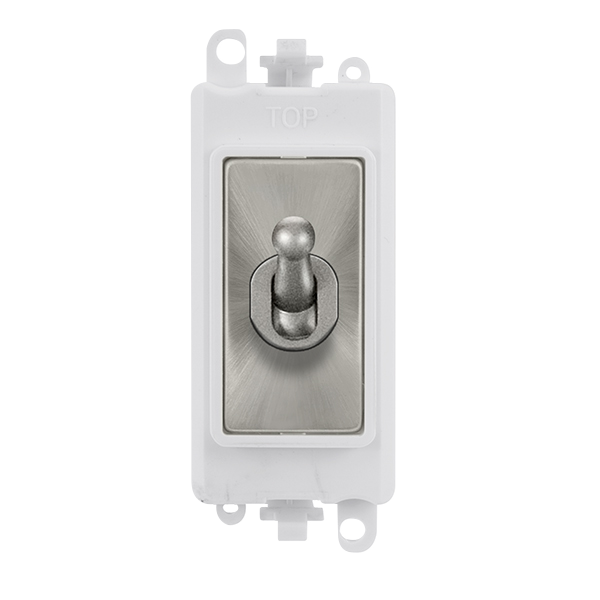

Satin Chrome - GM209028PWSC
Stainless Steel - GM209028PWSS
For more information Click Here for more details on the Click Grid Pro range
