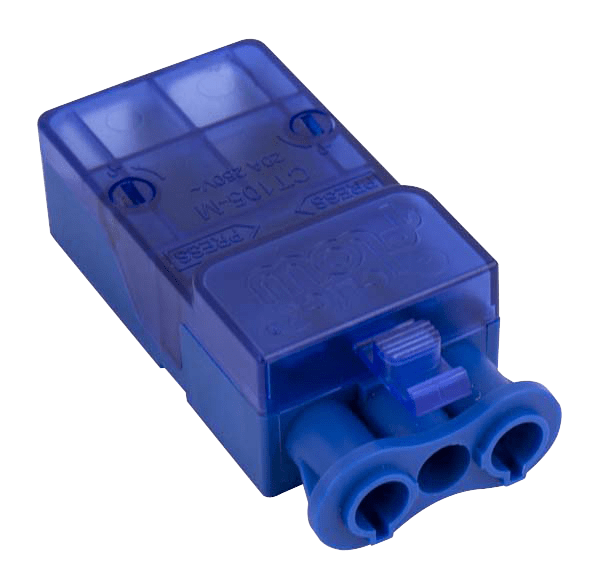

Click Flow 250V 20A 3 Pin Male Connector (Push Fit) CT105M

The Lighting Management System is a new range of additional products to the existing Flow range and has been designed specifically to help contractors create more complex lighting installations quickly, easily and safely. It features a number of new products that allow the quick connection, configuration and re-configuration of circuits, primarily intended for lighting.

• Dimensions: Female: 79mm (W) x 24mm (H) x 36mm (D)
• Minimum Aperture Diameter: 40mm
• Operating Voltage: 250AC
• Resistive Load Rating: 20A
• Termination Type: Push Fit
• Terminal Capacity (Solid): 2.5mm Max
• Terminal Capacity (Flex): 2.5mm Max
• Termination Layout: N-E-L
• Cable Restraint Supplied: Yes
• Rated Impulse Voltage: 4kV
• Ingress Protection: IP20
