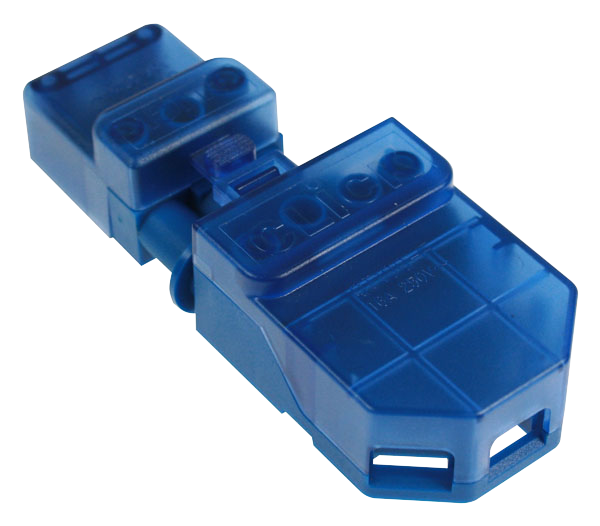

Click Flow 250V 20A 3 Pin Complete Connector CT101C

The Lighting Management System is a new range of additional products to the existing Flow range and has been designed specifically to help contractors create more complex lighting installations quickly, easily and safely. It features a number of new products that allow the quick connection, configuration and re-configuration of circuits, primarily intended for lighting.

• Dimensions: Female: 68mm (W) x 22mm (H) x 40mm (D) - Male: 52mm (W) x 22mm (H) x 30mm (D)
• Minimum Aperture Diameter: 46mm
• Operating Voltage: 250AC
• Resistive Load Rating: 20A
• Termination Type: Screw
• Terminal Size: 4.2mm
• Terminal Capacity (Solid): 3 x 2.5mm
• Terminal Capacity (Flex): 3 x 1.5mm
• Termination Layout: N-E-L (Male) & L-E-N-Loop (Female)
• Cable Restraint Supplied: On Male Only
• Rated Impulse Voltage: 4kV
• Ingress Protection: IP20
