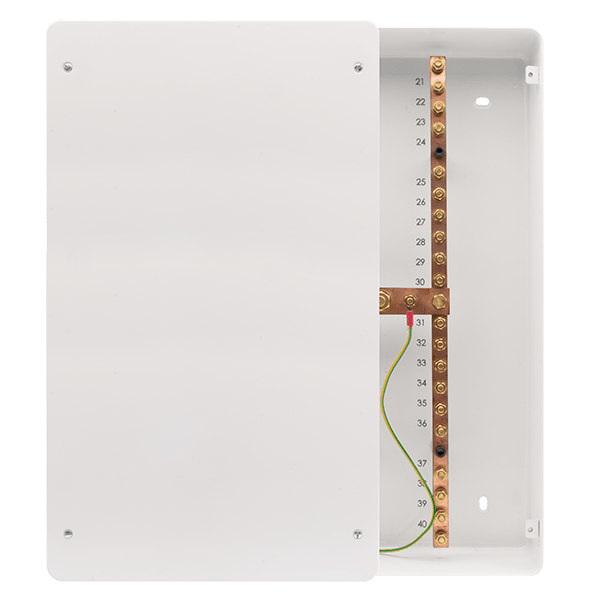

Click Essentials 40 Way Recess Mounted Equipotential Bonding Busbar EBB240R

Click Essentials 40 Way Recess Mounted Equipotential Bonding Busbar EBB240R

EBB240R

£488.45 GBP
£488.45 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT
  • Box Dimensions (mm) 235 (W) x 235 (H) x 60 (D)
  • Cover Dimensions (mm) 240.4 (W) x 240.5 (H) x 5.2 (D)
  • Style Metal Clad
  • Colour White
  • Materials Front Plate & Mounting Box:
  • Electrophoretically Coated Steel Busbars: Copper
  • Operating Voltage (AC) 230 Frequency (Hz) 50
  • Resistive Load Rating (A) 200
  • Incoming Terminal Diameter M8 (x1)
  • Earth Connections Diameter M5 (x18)
  • Main Bar CSA (mm²) 48
  • Chassis Earth Link Cable 1.5mm² Heat Resistant to 90°C
  • Cover Earth Link Cable 1.5mm² Heat Resistant to 90°C
  • Termination Type Threaded With Nut
  • Back Box Knockouts - Total (mm) None (To cut own entries)
  • Ingress Protection IP20
  • Warranty (Years) 10
  • Standards BS EN 61439-1, HTM06-01, IEC 60364-7-710, BS 7671
