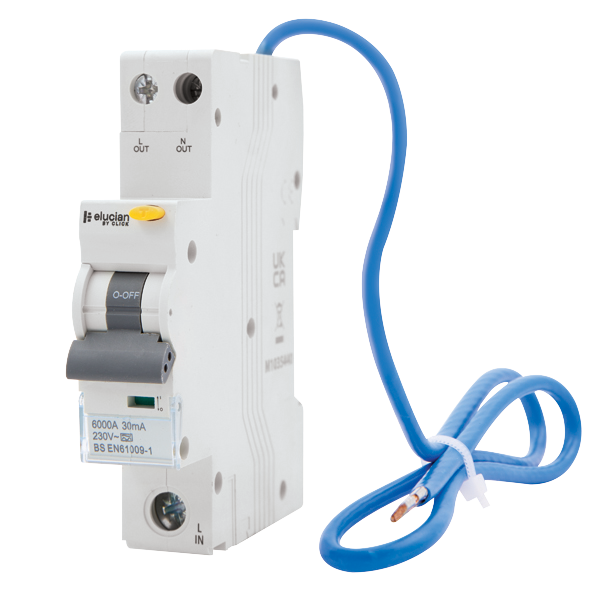

Click Elucian 6A 30mA Type A 1 Pole 6kA B Curve RCBO CU1RCBO6B

Click Elucian 6A 30mA Type A 1 Pole 6kA B Curve RCBO CU1RCBO6B

SKU:CU1RCBO6B

Regular price £15.20 GBP
Regular price Sale price £15.20 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

 More payment options

Pickup available at Unit 1A Furnace Street

Usually ready in 24 hours

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

  • Dimensions: 17.8mm (W) x 91.8mm (H) x 76.6mm (D)
  • Rated Voltage: 240v
  • Maximum Rated Current: 6A
  • Rated Breaking Capacity: 6A (True kA)
  • Rated Insulated Voltage: 500
  • Type: Type A
  • Trip Curve: B Type
  • Tripping Current: 30mA
  • Device Terminals: Screwed Lug & Pin
  • Input Terminal Capacity: 25mm Flexible or 32mm Rigid
  • Number of Poles: 1P + Unswtiched Neutral
  • Circuit Protection: Earth Fault, Overcurrent & Short-Circuit
  • Neutral Tail Length: 450mm
