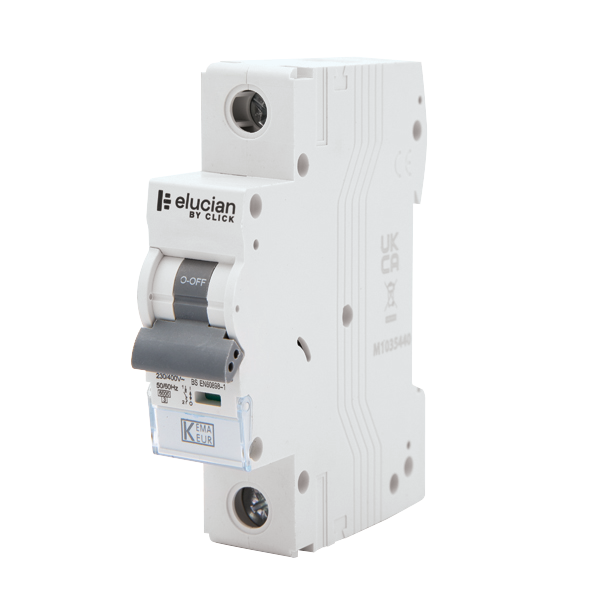

Click Elucian 63A 1 Pole 6kA B Curve MCB CU1MCB63B

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

• Dimensions: 17.8mm (W) x 85.3mm (H) x 76.6mm (D)
• Rated Voltage: 230/400v
• Maximum Rated Current: 63A
• Rated Breaking Capacity: 6A (True kA)
• Rated Insulated Voltage: 500
• Trip Curve: B Type
• Device Terminals: Screwed Lug & Pin
• MCB Terminal Capacity: 16mm Flexible or 25mm Rigid
• Number of Poles: 1
