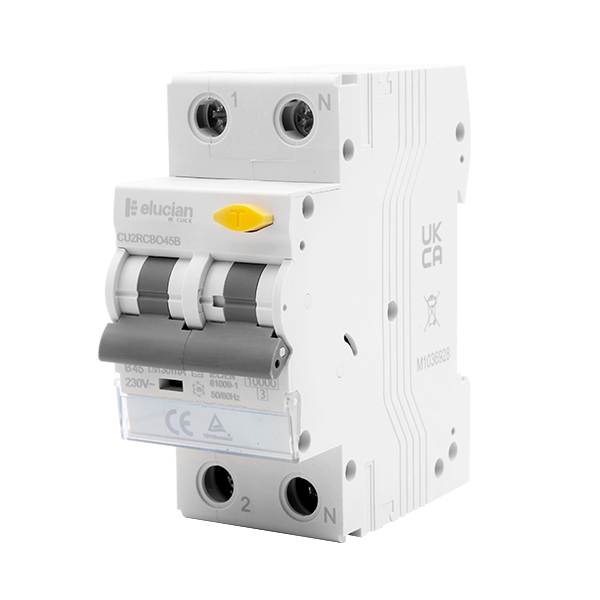

Click Elucian 45A 30mA Type A 2 Pole 6kA B Curve RCBO CU2RCBO45B

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

• Dimensions: 36.5mm (W) x 84mm (H) x 76.6mm (D)
• Rated Voltage: 240v
• Maximum Rated Current: 45A
• Rated Breaking Capacity: 6A (True kA)
• Rated Insulated Voltage: 500
• Type: Type A
• Trip Curve: B Type
• Tripping Current: 30mA
• Device Terminals: Screwed Lug & Pin
• Input Terminal Capacity: 10mm Flexible or 16mm Rigid
• Number of Poles: 2 Pole
• Circuit Protection: Earth Fault, Overcurrent & Short-Circuit
