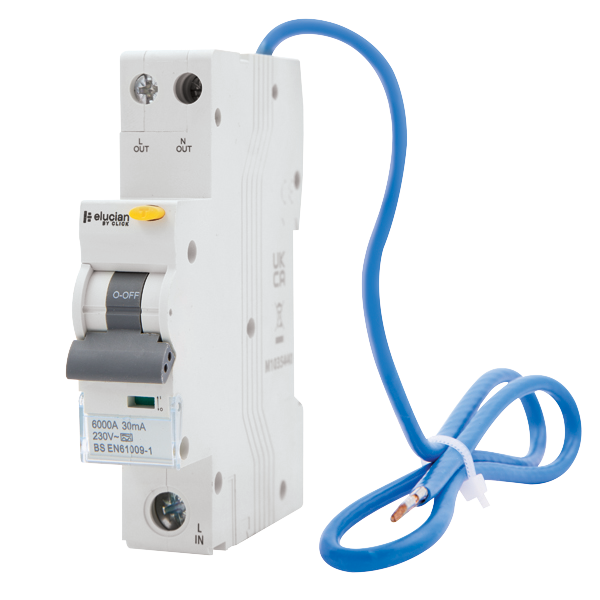

Click Elucian 45A 30mA Type A 1 Pole + Switched Neutral True 6kA B Curve RCBO CU1RCBON45B
Click Elucian 45A 30mA Type A 1 Pole + Switched Neutral True 6kA B Curve RCBO CU1RCBON45B
SKU:CU1RCBON45B
Regular price
£22.79 GBP
Regular price
Sale price
£22.79 GBP
Unit price
/
per
Ex. VAT
Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.
- Dimensions: 17.8mm (W) x 91.8mm (H) x 76.6mm (D)
- Rated Voltage: 240v
- Maximum Rated Current: 45A
- Rated Breaking Capacity: 6A (True kA)
- Rated Insulated Voltage: 500
- Type: Type A
- Trip Curve: B Type
- Tripping Current: 30mA
- Device Terminals: Screwed Lug & Pin
- Input Terminal Capacity: 25mm Flexible or 32mm Rigid
- Number of Poles: 1P + Switched Neutral
- Circuit Protection: Earth Fault, Overcurrent & Short-Circuit
- Neutral Tail Length: 450mm
