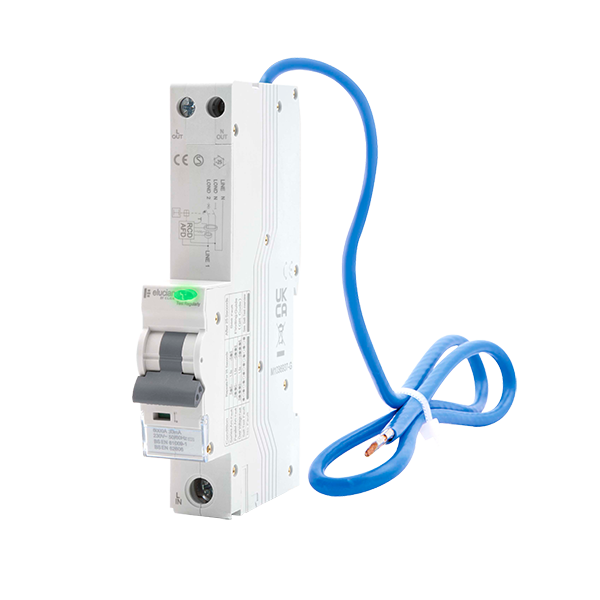

Click Elucian 40A 30mA Type A 1 Pole 6kA C Curve AFDD + RCBO CU1AFDD40C

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

• Dimensions: 17.8mm (W) x 118mm (H) x 76.6mm (D)
• Rated Voltage: 240v
• Maximum Rated Current: 40A
• Rated Breaking Capacity: 6A (True kA)
• Rated Insulated Voltage: 500
• Type: Type A
• Trip Curve: C Type
• Tripping Current: 30mA
• Device Terminals: Screwed Lug & Pin
• Input Terminal Capacity: 25mm Flexible or 32mm Rigid
• Number of Poles: 1P + Unswtiched Neutral
• AFDD Circuit Protection: Series Arc Fault, Parallel Arc Fault, Over Voltage Fault, Self Test Fault & No Fault
• RCBO Circuit Protection: Earth Fault, Overcurrent & Short-Circuit
• Neutral Tail Length: 450mm
