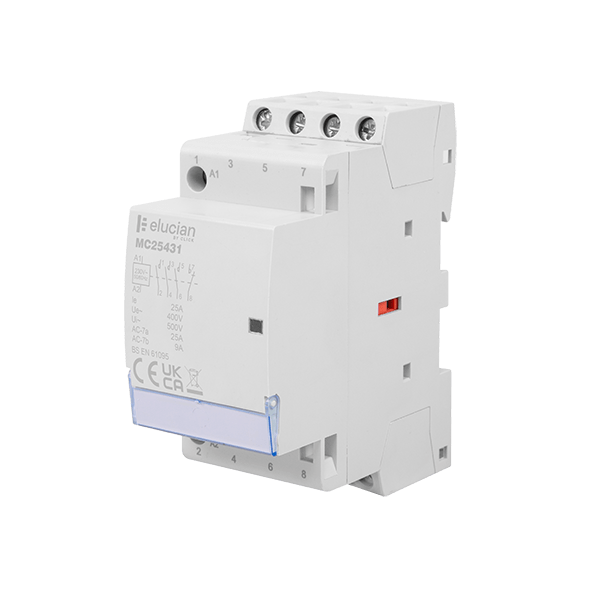

Click Elucian 4 Pole 2 Module 25A Contactor 3 x Normally Open + 1 x Normally Closed Contacts MC25431
Click Elucian 4 Pole 2 Module 25A Contactor 3 x Normally Open + 1 x Normally Closed Contacts MC25431
SKU:MC25431
Regular price
£32.79 GBP
Regular price
Sale price
£32.79 GBP
Unit price
/
per
Ex. VAT
Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.
- Dimensions: 36mm (W) x 81mm (H) x 68m (D)
- Rated Operational Voltage (AC) (Ue): 400
- Frequency (Hz): 50/60
- Rated Operating Current - AC-1 / AC-7a (A): 25
- Rated Insulation Voltage (V) (UI): 500
- Endurance Mechanical Operations: >5000000
- Endurance Electrical Operations: >100000
- Device Terminals: Screwed Lug & Pin
- Coil Terminal Capacity - Flexible (mm): 1.5 to 2.5
- Coil Terminal Capacity - Rigid (mm): 1.5 to 2.5
- Main Contact Terminal Capacity - Flexible (mm): 1 to 4
- Main Contact Terminal Capacity - Rigid (mm): 1.5 to 6
- Number of Poles: 4
- Ingress Protection: IP20
