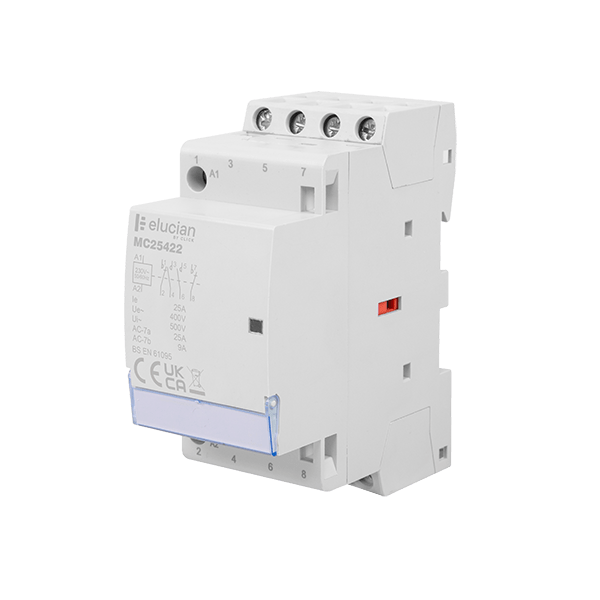

Click Elucian 4 Pole 2 Module 25A Contactor 2 x Normally Open + 2 x Normally Closed Contacts MC25422

Click Elucian 4 Pole 2 Module 25A Contactor 2 x Normally Open + 2 x Normally Closed Contacts MC25422

SKU:MC25422

Regular price £32.79 GBP
Regular price Sale price £32.79 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

  • Dimensions: 36mm (W) x 81mm (H) x 68m (D)
  • Rated Operational Voltage (AC) (Ue): 400
  • Frequency (Hz): 50/60
  • Rated Operating Current - AC-1 / AC-7a (A): 25
  • Rated Insulation Voltage (V) (UI): 500
  • Endurance Mechanical Operations: >5000000
  • Endurance Electrical Operations: >100000
  • Device Terminals: Screwed Lug & Pin
  • Coil Terminal Capacity - Flexible (mm): 1.5 to 2.5
  • Coil Terminal Capacity - Rigid (mm): 1.5 to 2.5
  • Main Contact Terminal Capacity - Flexible (mm): 1 to 4
  • Main Contact Terminal Capacity - Rigid (mm): 1.5 to 6
  • Number of Poles: 4
  • Ingress Protection: IP20
