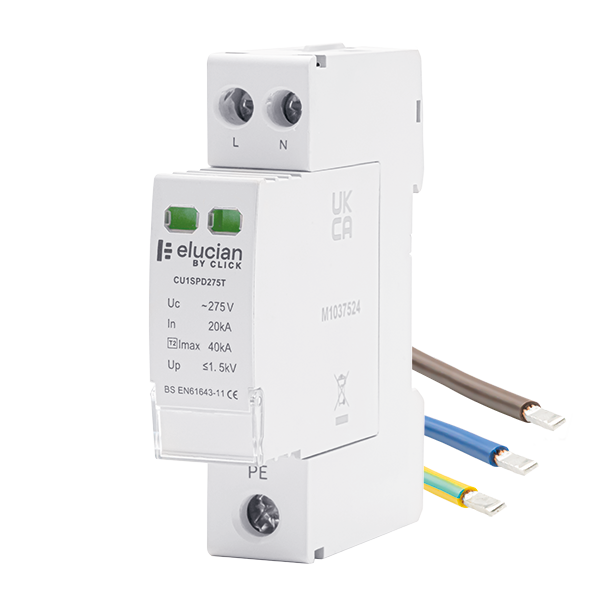

Click Elucian 2 Pole 275Uc 40kA Type 2 18mm SPD with Tails CU1SPD275T

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

• Dimensions: 18mm (W) x 90mm (H) x 70mm (D)
• Maximum Continous Operating Voltage (AC) (UC): 275
• SPD Type: Type 2
• Overcurrent Protection (A): 300
• Voltage Protection Level (Kv) (Up): <1.5
• Normal Discharge Current (kA) (ln): 20 (L-N & N-PE)
• Maximum Discharge Current (kA) (lmax): 40 (L-N & N-PE)
• Response Time (ns) (tA): <25
• Compatible Earth Systems: TT / TN
• Visual Indicator Status (Green): Normal Function
• Visual Indicator Status (Red): Cartridge Replacement (CU1SPDC275)
• Device Terminals: Screw Lug & Pin
• SPD Terminal Capacity L&N (mm): 4-16
• SPD Terminal Capacity PE (mm): 4-25
• Number of Poles: 2
• Ingress Protection: IP20
• 6mm Tails Supplied: (Live, Neutral & Earth)
• Additional Overcurrent Portection: Not Required
