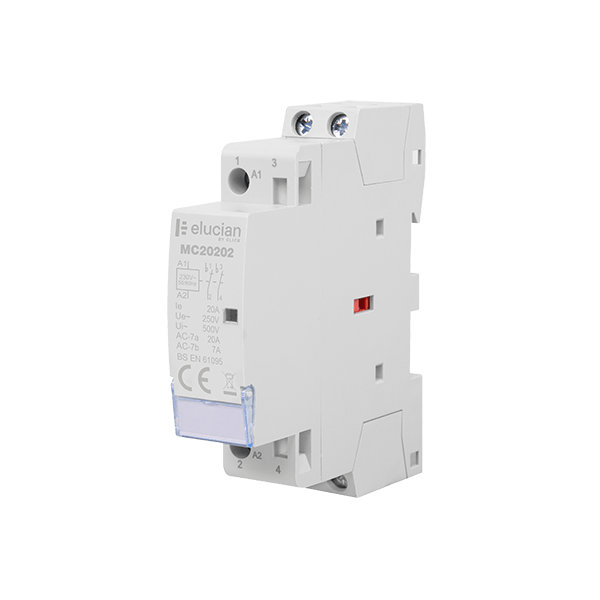

Click Elucian 2 Pole 1 Module 20A Contactor 2 x Normally Closed Contacts MC20202

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

• Dimensions: 18mm (W) x 81mm (H) x 68m (D)
• Rated Operational Voltage (AC) (Ue): 250
• Frequency (Hz): 50/60
• Rated Operating Current - AC-1 / AC-7a (A): 20
• Rated Insulation Voltage (V) (UI): 500
• Endurance Mechanical Operations: >5000000
• Endurance Electrical Operations: >100000
• Device Terminals: Screwed Lug & Pin
• Coil Terminal Capacity - Flexible (mm): 1.5 to 2.5
• Coil Terminal Capacity - Rigid (mm): 1.5 to 2.5
• Main Contact Terminal Capacity - Flexible (mm): 1 to 4
• Main Contact Terminal Capacity - Rigid (mm): 1.5 to 6
• Number of Poles: 2
• Ingress Protection: IP20
