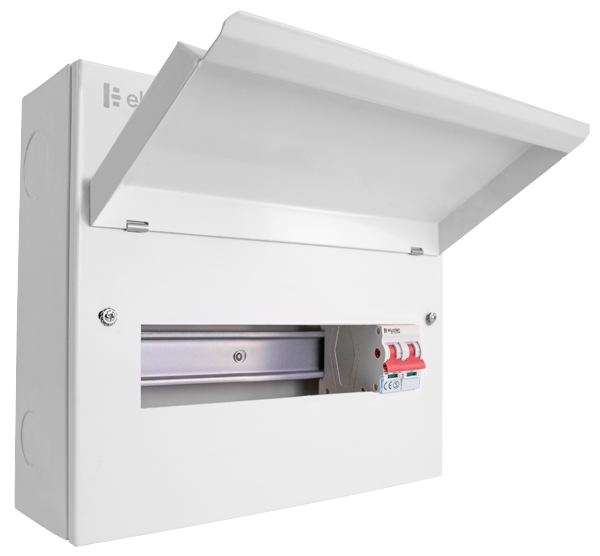

Click Elucian 12 Way (10 Free) Metal Consumer Unit with 100A Mains Switch CUEB12MS10

Click Elucian 12 Way (10 Free) Metal Consumer Unit with 100A Mains Switch CUEB12MS10

SKU:CUEB12MS10

Regular price £40.19 GBP
Regular price Sale price £40.19 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

  • Dimensions: 294mm (W) x 260mm (H) x 115mm (D)
  • Rated Voltage: 230V
  • Maximum Rated Current: 100A
  • Free Ways: 10
  • Total Ways: 12
  • Device Terminals: Screwed Lug & Pin
  • Main Switch Installed: 1 x 100A (CU2MS100)
  • Main Switch Terminal Capacity: 35mm
  • Blanks Supplied: 2 (CU1BLANK)
  • E&N Terminals: Screw
  • Tail Clamp Capacity: 25mm
  • Enclosure Side Knockouts: 2 x 40mm
  • Enclosure Top Knockouts: 4 x 20mm, 2 x 40mm
  • Enclousure Bottom Knockouts: 3 x 20mm, 2 x 25mm & 2 x 32mm
  • Enclosure Rear Knockout: 2 x 100mm x 60mm
  • Impact Rating: IK05
  • Ingress Protection: IP20
  • Maximum Humidity: 95%
