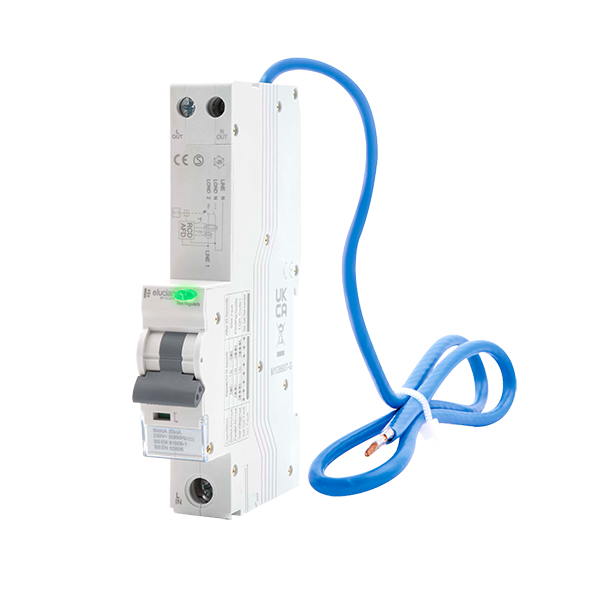

Click Elucian 10A 30mA Type A 1 Pole 6kA C Curve AFDD + RCBO CU1AFDD10C

Click Elucian 10A 30mA Type A 1 Pole 6kA C Curve AFDD + RCBO CU1AFDD10C

SKU:CU1AFDD10C

Regular price £110.44 GBP
Regular price Sale price £110.44 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

  • Dimensions: 17.8mm (W) x 118mm (H) x 76.6mm (D)
  • Rated Voltage: 240v
  • Maximum Rated Current: 10A
  • Rated Breaking Capacity: 6A (True kA)
  • Rated Insulated Voltage: 500
  • Type: Type A
  • Trip Curve: C Type
  • Tripping Current: 30mA
  • Device Terminals: Screwed Lug & Pin
  • Input Terminal Capacity: 25mm Flexible or 32mm Rigid
  • Number of Poles: 1P + Unswtiched Neutral
  • AFDD Circuit Protection: Series Arc Fault, Parallel Arc Fault, Over Voltage Fault, Self Test Fault & No Fault
  • RCBO Circuit Protection: Earth Fault, Overcurrent & Short-Circuit
  • Neutral Tail Length: 450mm
