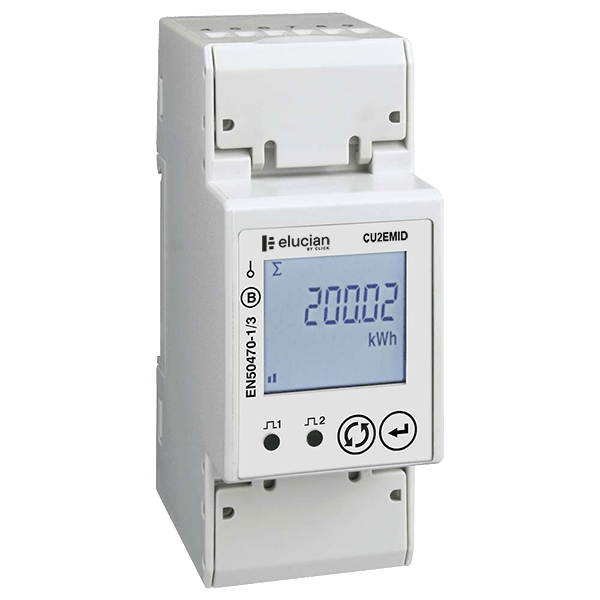

Click Elucian 100A Single Phase MID Modbus Multifunction Energy Meter CU2EMID

Click Elucian 100A Single Phase MID Modbus Multifunction Energy Meter CU2EMID

SKU:CU2EMID

Regular price £61.39 GBP
Regular price Sale price £61.39 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

Elucian by Click brings to market a comprehensive Consumer Unit and Circuit protection range. Covering a broad range of installations and offers a number of features and benefits that will enhance the products convenience, flexibility and safety properties.

  • Dimensions: 35mm (W) x 90mm (H) x 47mm (D)
  • Materials: Housing - Self-extinguishing Polycarbonate (UL94 V-0)
  • Input Terminal Capacity: 35mm Rigid
  • Output Terminal Capacity: 2.5mm Rigid
  • Display Type: LCD, HD with White Backlight
  • Digit Height: 4mm
  • Page Scrolling: Manual by Front Key or Auto Scroll Mode
  • Displayed Parameters & Accuracies:
  • - Voltage: 0.5% of Max Range
  • - Current: 0.5% of Normal
  • - Frequency: 0.2% of Normal Frequency
  • - Power Factor: 1% of Unity (0.01)
  • - Active Power: 1% of Range Maximum
  • - Reactive Power: 1% of Range Maximum
  • - Apparent Power: 1% of Range Maximum
  • - Active Energy Class: Class B
  • - Reactive Energy: 1% of Range Maximum
  • Energy Displayed Maximum: 99999.99
  • Resolution: 10wh
  • Programming Parameters:
  • - Pulse Output: (kWh or kVarh)
  • - Pulse Output Resolution
  • - Pulse Output Duration
  • - Demand Period (for integration)
  • - Auto Page Scroll Time
  • - Back Light Time Out Period
  • - Reset Max Demand
  • - Change Password
  • - Communication Parity: Fixed
  • Programming Access: Password Protection (User Selectable)
  • Memory Reserve: Non-Volatile Memory (EEPROM)
  • Operating Voltage Range (V AC): 176 to 276
  • Voltage Circuit Power Consumption (Max.) <8
  • Maximum Current (A) (lmax): 100 (Direct Connection)
  • Starting Current (mA): 40
  • Short Time Overcurrent: 30 lmax / 10ms
  • Impulse Withstand Voltage: 6000
  • Voltage Withstand (AC): 4kV for 1 minute
  • Frequency: 50
  • Rated Insulation Voltage (V): 300 (L-N)
  • Number of Pulse Outputs: 2
  • Pulse Output Function: 1 x 1000imp/kWh
  • - 1 x User Configurable Pulse Rate and energy Type (kWh or kVarh)
  • Pulse Output Type: Semiconductor (does not support volt-free operation)
  • Pulse Output current (Max): 27mA (Class A)
  • Pulse Output Voltage Range: 5 to 27
  • Pulse Duration: Selectable 60, 100, 200mS
  • Selectable Pulse Resolution: 0.001, 0.01, 0.1, 1
  • Communication Protocol: Modbus
  • Address: 1 to 255
  • Number of Bits: 8
  • Parity: None, Odd, Even
  • Baud Rates (bps): 1200, 2400, 4800, 9600
  • Required Response Time to request: <100ms
  • Number of Connected Meters: 32 (up to 255 with RS485 Repeater)
  • Distance from Master Device (M Max): 1200
  • Ingress Protection: IP20
  • Tamper Seal: Must be Fitted to Comply with MID
