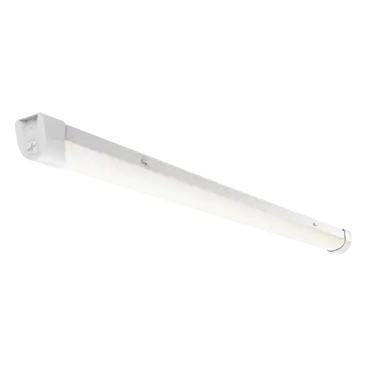

Ansell Topline EVO 5FT 1500mm CCT Multi Wattage LED Batten ATLEVO5 + Options
Ansell Topline EVO 5FT 1500mm CCT Multi Wattage LED Batten ATLEVO5 + Options
SKU:ATLEVO5/SM3
Regular price
£77.00 GBP
Regular price
Sale price
£77.00 GBP
Unit price
/
per
Ex. VAT
This is an oversized item and is subject to a surcharge on deliveries. Collection is free on this item, for anymore information please contact us.
- High performance, multi-wattage LED CCT batten suitable for industrial and multi-purpose applications
- Selectable CCT between 3000K, 4000K and 5700K
- High efficiency up to 140 lm/W
- Power selectable; offering high and low output option in each length
- Excellent light uniformity through high transmittance polycarbonate diffuser
- Instant light output with unlimited switching
- Innovative spring clip gear tray release aids fast and easy installation
- Self-test, lithium emergency option
- Dimmable and Smart options available
- Powered by Tridonic
- Length: 1527mm
- Height: 69.5mm
- Width: 74.4mm
- Total Watts: 24W-43W
- Lumens: 3300lms-6000lms
- CCT: 3000/4000/5700K
- Input: 220/240V
- Beam Angle: 105/140 Degrees
- Class: 1
- IP Rating: IP20
- IK Rating: IK06
- Warranty: 5 Years
Options Part Numbers and lead time:
- Self Test Emergency - ATLEVO5/SM3
- Corridor Function - ATLEVO5/CF (7-10 Working Days Production Time)
- Corridor Function + Self Test Emergency - ATLEVO5/CF/SM3 (7-10 Working Days Production Time)
- Integral Microwave Sensor - ATLEVO5/MWS
- Integral Microwave Sensor + Self Test Emergency ATLEVO5/MSW/SM3
- OCTO Smart Control - ATLEVO5/OCTO (7-10 Working Days Production Time)
- OCTO Smart Control + Self Test Emergency - ATLEVO5/OCTO/SM3 (7-10 Working Days Production Time)
- Digital Dimming (Switch) - ATLEVO5/DD1 (7-10 Working Days Production Time)
- Digital Dimming (Switch) + Self Test Emergency - ATLEVO5/DD1/SM3 (7-10 Working Days Production Time)
- Digital Dimming (DALI) - ATLEVO5/DD3 (7-10 Working Days Production Time)
- Digital Dimming (DALI) + Self Test Emergency - ATLEVO5/DD3/SM3 (7-10 Working Days Production Time)
- Digital Dimming (1-10V) - ATLEVO5/DD4 (7-10 Working Days Production Time)
- Digital Dimming (1-10V) + Self Test Emergency - ATLEVO5/DD4/SM3 (7-10 Working Days Production Time)
