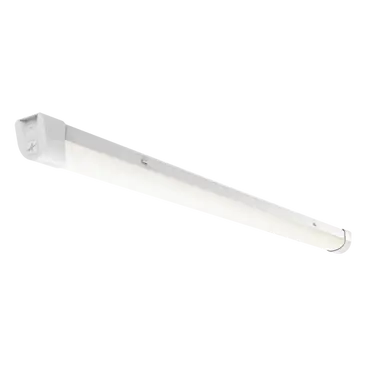

Ansell Topline EVO 4FT 1200mm CCT Multi Wattage LED Batten ATLEVO4 + Options

• High performance, multi-wattage LED CCT batten suitable for industrial and multi-purpose applications
• Selectable CCT between 3000K, 4000K and 5700K
• High efficiency up to 140 lm/W
• Power selectable; offering high and low output option in each length
• Excellent light uniformity through high transmittance polycarbonate diffuser
• Instant light output with unlimited switching
• Innovative spring clip gear tray release aids fast and easy installation
• Self-test, lithium emergency option
• Dimmable and Smart options available
• Powered by Tridonic

• Length: 1223.7mm
• Height: 69.5mm
• Width: 74.4mm
• Total Watts: 18W-31W
• Lumens: 2500lms-4300lms
• CCT: 3000/4000/5700K
• Input: 220/240V
• Beam Angle: 105/140 Degrees
• Class: 1
• IP Rating: IP20
• IK Rating: IK06
• Warranty: 5 Years

Options Part Numbers and lead time:

• Self Test Emergency - ATLEVO4/SM3
• Corridor Function - ATLEVO4/CF (7-10 Working Days Production Time)
• Corridor Function + Self Test Emergency - ATLEVO4/CF/SM3 (7-10 Working Days Production Time)
• Integral Microwave Sensor - ATLEVO4/MWS
• Integral Microwave Sensor + Self Test Emergency ATLEVO4/MSW/SM3
• OCTO Smart Control - ATLEVO4/OCTO (7-10 Working Days Production Time)
• OCTO Smart Control + Self Test Emergency - ATLEVO4/OCTO/SM3 (7-10 Working Days Production Time)
• Digital Dimming (Switch) - ATLEVO4/DD1 (7-10 Working Days Production Time)
• Digital Dimming (Switch) + Self Test Emergency - ATLEVO4/DD1/SM3 (7-10 Working Days Production Time)
• Digital Dimming (DALI) - ATLEVO4/DD3 (7-10 Working Days Production Time)
• Digital Dimming (DALI) + Self Test Emergency - ATLEVO4/DD3/SM3 (7-10 Working Days Production Time)
• Digital Dimming (1-10V) - ATLEVO4/DD4 (7-10 Working Days Production Time)
• Digital Dimming (1-10V) + Self Test Emergency - ATLEVO4/DD4/SM3 (7-10 Working Days Production Time)
