Ansell

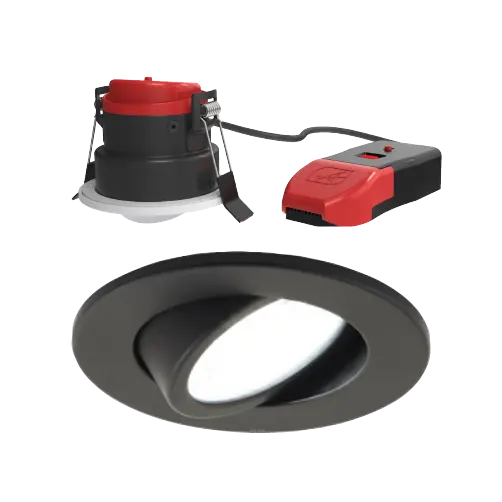

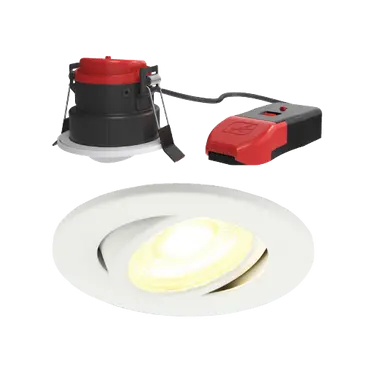

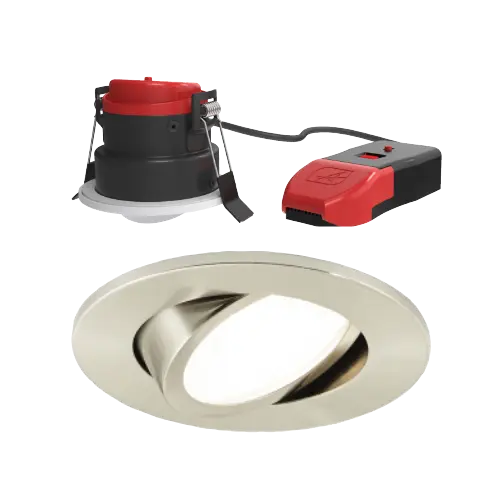

Ansell Prism Pro Fire Rated Gimbal CCT Dual Wattage LED Downlight APRIPG/1/xx

Ansell Prism Pro Fire Rated Gimbal CCT Dual Wattage LED Downlight APRIPG/1/xx

SKU:APRIPG/1/MW

Regular price £16.98 GBP
Regular price Sale price £16.98 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT

  • 220-240V IP20 dimmable LED 4 CCT selectable fire rated performance gimbal suitable for residential and hospitality applications
  • CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire
  • 30° tilt angle
  • New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
  • Remote driver with 2x1.5mm˛ + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
  • Low profile design and remote driver allows installation into shallow ceiling voids
  • Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
  • Fully tested to meet Part E (acoustic) and Part L (energy) of Building Regulations
  • Wide 60° beam angle for increased light distribution



  • Height: 67 mm
  • Diameter: 86 mm
  • Depth: 63 mm
  • Cut-Out Size: 73mm
  • Total (Watts): 5W - 7W
  • Lumens Delivered: 530lm - 690lm (4000K)
  • Lm/W: 100lm/W (4000K)
  • CRI: 80
  • CCT: 2700/3000/4000/6000K
  • Input: 220/240V
  • Operating Temp: -20°C - 35°C
