Live Electrical

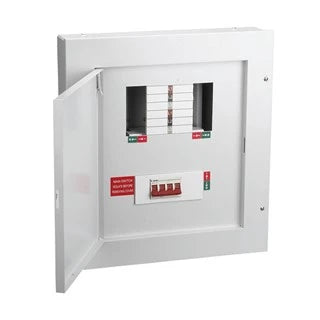

Live Electrical 72 Way (24 TP Way) with 4 Pole 125A Main Switch Incomer TP&N Distribution Board TPN24-125

Live Electrical 72 Way (24 TP Way) with 4 Pole 125A Main Switch Incomer TP&N Distribution Board TPN24-125

TPN24-125

£299.21 GBP
£299.21 GBP
Sale Sold out
Shipping calculated at checkout.

Ex. VAT
  • Modern style finished in epoxy powder paint to RAL7035
  • Rated voltage AC380V/415V 50/60Hz.
  • Maximum loading current to 125A
  • Section Neutral & Earth terminal are fitted both sides
  • Quicker installation with earth & neutral terminals adjacent to the MCBs/RCBOs
  • Fully enclosed busbar system
  • Complete shrouding for main incomer and link.
  • Removable gland plate for ease of wall mounting
  • All version supplied with Main Switch
  • Complies with BS EN 61439-3.
  • Mains switch Double Wiring Terminal
  • Dimensions: 465mm (W) x 1046mm (H) x 105mm (D)
